GSM Remote Controllers Available from WAFERSTAR

automatic gatesbollardirrigationland roveroil pumpgarage doorbarrierengine pre-heater timercell phone

Open your automatic gates with your cell phone from anywhere in the world !

WAFER GSM KEY to EasyGate (Model:GSM-KEY-AC and CDMA-KEY-AC)

GSM Key Switch for Automatic Door (Model GSM-KEY-AC)

AC120-240V Power input;
Powerful and lost cost device;
Two alarm input channels for gate safety;
Very safety with your authorized telephone number to open the gate;
Several special phone number groups for limited timer access level;
Professional industrial grade GSM engine, RTU5011
Up to 2000 phone numbers to control ;

Understand more

GSM Key Switch for Automatic Door (Model GSM-KEY-AC2000 3G Version)

AC120-240V Power input or AC/DC12-24V power input (Optional for order);
Powerful and lost cost device;
Two relay output channels for gate opener;
Two alarm input channels for gate safety;
All compatible with GSM-KEY functions
Rechargeable battery for power off alarm , RTU5011
Up to 2000 phone numbers to control
Support Australia, USA, Singapore , Europe ;

Understand more

WAFER GSM KEY to EasyGate (Model:GSM-KEY-DC)

GSM Key Switching to EasyGate (Model GSM-KEY-DC)

AC/DC12-24V Power input;
Powerful and lost cost device;
Two alarm input channels for gate safety;
Very safety with your authorized telephone number to open the gate;
Professional industrial grade GSM engine
Up to 2000 phone numbers to control ;

Understand more

WAFER GSM KEY to EasyGate (Model:GSM-KEY-ADC)

GSM Key Switching to EasyGate (Model GSM-KEY-ADC)

AC/DC12-24V Power input;
Powerful and lost cost device;
Two alarm input channels for gate safety ;
Very safety with your authorized telephone number to open the gate;
Professional industrial grade GSM engine
Up to 2000 phone numbers to control ;

Understand more

WAFER GSM-KEY Android and iphone Software (Free of charge for the noraml order)

GSM-Key software for android and iphone

Understand more

Control central heating, engine pre-heaters, aviation engine heaters, irrigation systems, pumping stations, control machinery, remotely reboot routers, servers & computers using your cell phone from anywhere in the world !



GSM /CDMA Remote control board series

GSM Remote switch, gsm relay switch, gsm sms remote control, gsm sms controller,gsm switch controller and GSM control box

GSM or CDMA remote control switch, it connects to the mobile phone network and like a mobile phone has its own telephone number . The device is activated by calling its phone number or send the SMS control command, it will recognise an authorised telephone number calling it, reject the call without answering and switch on or off the device connected to it.

It's applications include the remote control of central heating, lighting, engine pre-heaters, aviation engine heaters, irrigation systems, water well pumps, pumping stations, cabin heaters, resetting & reboot of remote servers and routers, arming and disarming security systems.

For WAFER GSM products selection guide,please check the pages of GSM Application FAQ

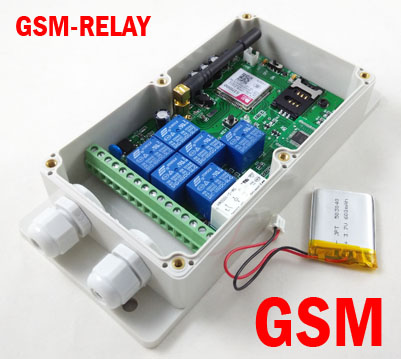

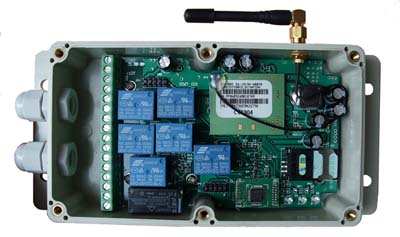

Model: GSM-RELAY 2016Version

GSM controller,Working with GSM cell phone network
7 Relay channel,each at 220V/10A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with 12-24VAC/DC

Backup battery on board for power off alarm

Wifi-plug compatible working
All functions compatible with GSM-RELAY
Working frequency:850/900/1800/1900MHz

========>>>>>>Detail

Model: GSM-RELAY 4G Version

4G Remote control board, Working with 4G/3G and GSM cell phone network
7 Relay channel,each at 220V/10A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with 12-24VAC/DC

All functions compatible with GSM-RELAY



========>>>>>>Detail

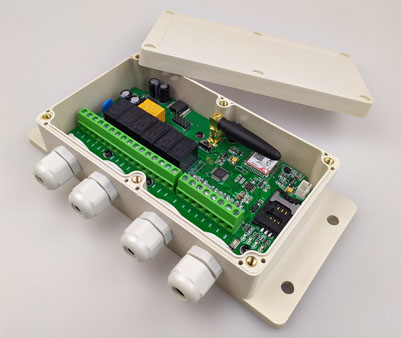

Model: GSM-RELAY6 2018Version

GSM controller,Working with GSM cell phone network
6 Relay channel,each at 220V/10A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with 12-24VAC/DC

Backup battery on board for power off alarm

6 Alarm input on board
All functions compatible with GSM-RELAY
Working frequency:GSM or 3G (Optional)

========>>>>>>Detail

Model: GSM-CTL

GSM Remote control board, Working with GSM cell phone network
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with 12-24VAC/DC

========>>>>>>Detail

Model: GSM-AUTO

GSM Remote control box, Working with GSM cell phone network
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with 12-24VAC/DC

Onboard clock for scheduled time table to work
Both relay work at switch mode or pulse mode

========>>>>>>Detail

Model: GSM-AUTO 4G Version

4G Remote control board, Working with 4G/3G and GSM cell phone network
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with DC12V
All functions compatible with GSM-AUTO

On boar backup battery for power off alarm

Working band for USA:
UMTS: B2/B4/B5
GSM: 850/1900MHz
FDD LTE: B2/B4/B5/B12/B17

Working band for Europe,Australia:
FDD LTE:B1/B3/B5/B7/B8/B20
UMTS:B1/B5/B8
GSM:850/900/1800/1900MHz

Model: GSM-AUTO-AC 4G Version

4G Remote control board, Working with 4G/3G and GSM cell phone network
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with AC100-240V
All functions compatible with GSM-AUTO

On boar backup battery for power off alarm

Working band for USA:
UMTS: B2/B4/B5
GSM: 850/1900MHz
FDD LTE: B2/B4/B5/B12/B17

Working band for Europe,Australia:
FDD LTE:B1/B3/B5/B7/B8/B20
UMTS:B1/B5/B8
GSM:850/900/1800/1900MHz

========>>>>>>Detail

Model: GSM-AUTO-AC

GSM SMS Remote control box, GSM relay switch controller, SMS relay controller
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with AC110-240V

Onboard clock for scheduled time table to work
Both relay work at switch mode or pulse mode

========>>>>>>Detail

Model: GSM-CTL-AC

GSM Remote switch controller, Working with GSM cell phone network
2 Relay channel,maximum at 230V/30A power
Water-proof box for outside project
PC Program adapter and software included
Config both relay working mode with Switch
Power supply with 100VAC to 230VAC

========>>>>>>Detail

Model: GSM-WEEKLY

GSM SMS Remote control box, Working with GSM cell phone network
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Rechargeable lithium battery
Alarm input port designed
Weekly working timer designed inside
Power supply with 12-24VAC/DC

Onboard clock for scheduled time table to work
Both relay work at switch mode or pulse mode

========>>>>>>Detail
